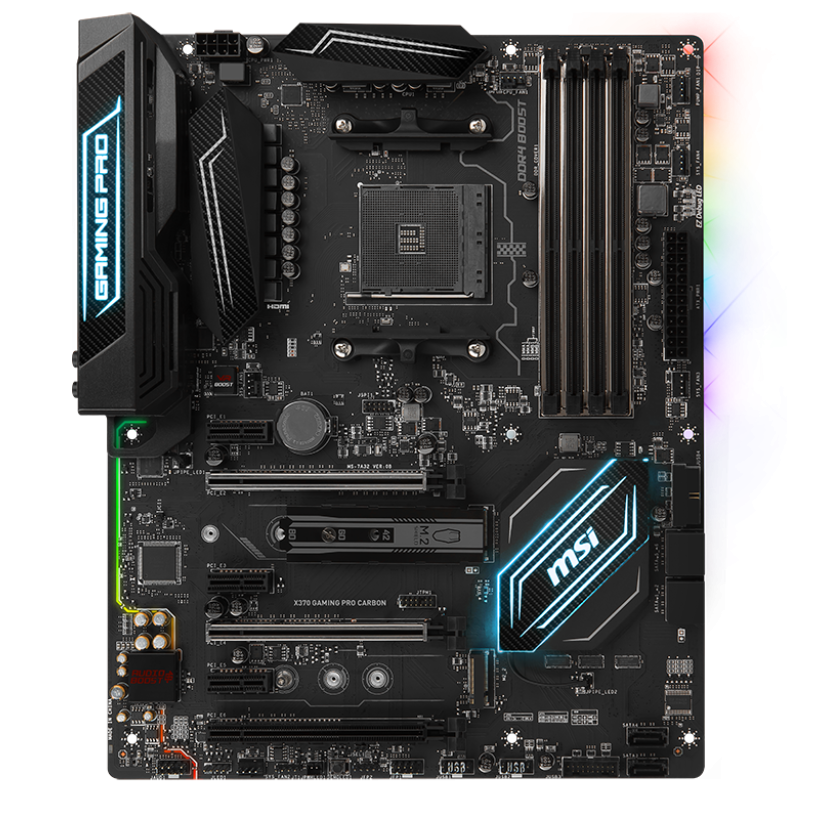

MSI X370 GAMING PRO Carbon AM4 Motherboard

Experience peak gaming performance with the MSI X370 Gaming Pro Carbon motherboard. Designed for AMD Ryzen processors, this motherboard combines cutting-edge features with striking aesthetics. Enjoy customizable Mystic Light RGB lighting, lightning-fast connectivity, and immersive sound quality with Audio Boost technology.

Specifications:

Model: ‎X370 GAMING PRO CARBON
CPU:

Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4

Chipset: AMD X370 Chipset

Memory:

4 x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz1
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)

Graphics

1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160@24Hz

Expansion Slots:

2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
– RYZEN series processors support x16/x0, x8/x8 mode
– Ryzen with Radeon Vega Graphics and A-series / Athlon X4 processors support x8/x0 mode
– AMD Athlon with Radeon Vega Graphics processors support x4/x0 mode
1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
3 x PCIe 2.0 x1 slots

Storage

6 x SATA 6Gb/s ports
2 x M.2 slots (Key M)
– M2_1 slot supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
– M2_2 slot supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

LAN
1 x Intel I211AT Gigabit LAN controller

Audio:

Realtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

USB Ports

4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen 1 connectors
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

Back I/O Ports:

– PS/2 GAMING Device Port
– DVI-D
– USB 3.1 Gen1 Ports
– Intel Gigabit LAN Port
– Golden Audio Connectors
– USB 2.0 Ports
– HDMI™
– VR Ready USB 3.1 Gen1 Ports
– Golden USB 3.1 Gen2 Type-A/C
– Optical S/PDIF-Out

Internal I/O Ports:

– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
– 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin water-pump-fan connector
– 4 x 4-pin system fan connectors
– 1 x TPM module connector
– 1 x Front panel audio connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper
– 1 x 4-pin RGB LED strip connector

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

OPERATING SYSTEM
– Support for Windows® 10 64-bit
– Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
